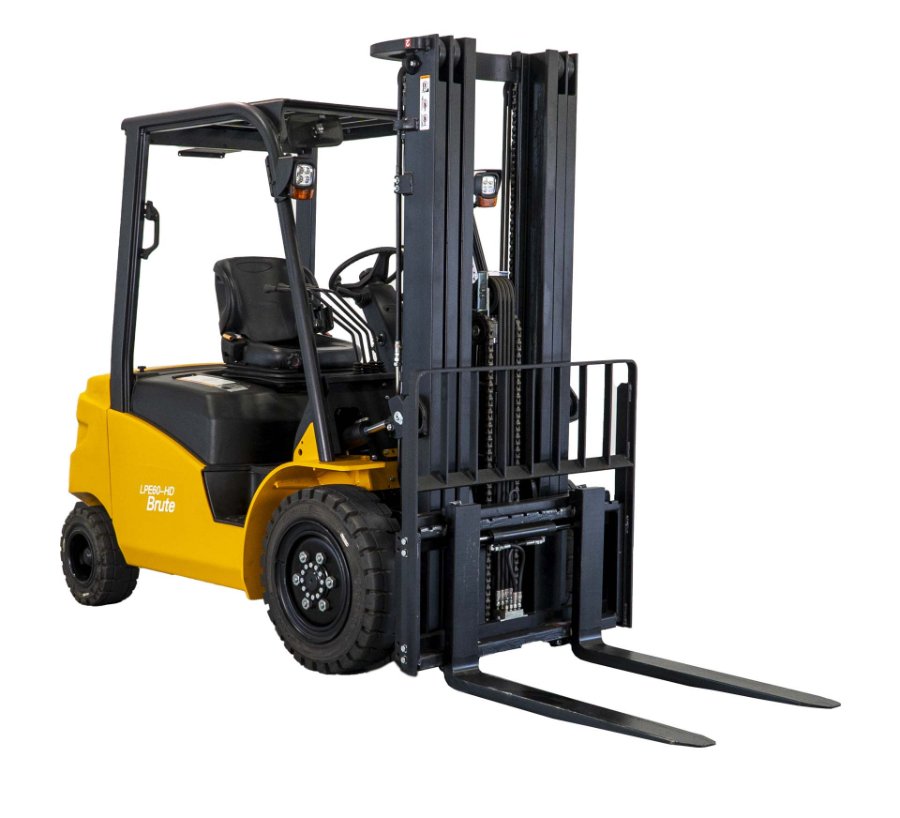

Model LPE50-70S

5,000 - 7,000 lb. Capacity Integrated Lithium-Ion Four-Wheel Pneumatic Electric Forklift

Designed for Material Handling in Tough Conditions.

Looking to electrify your internal combustion fleet? This is the solution. The LPE50-70S series features large tires and plenty of ground clearance for both indoor and outdoor applications that require navigation over the roughest surface conditions. Big Joe’s purpose-built, integrated Lithium-ion battery and powertrain deliver high performance in a package that was designed with operator comfort and productivity in mind.

Request A Quote Request Rental Quote

Apply For Financing

Specifications

General Data

Load Capacity (lbs./kgs.)

5000-7000

Load Center

24 (600)

Power Type

Battery

Operator Position

Seated Rider

Tire Type

Solid Pneumatic

Wheels (x=driven)

2x / 2

Exterior Dimensions

Fork Size (T x W x L) (in.)

1.6-2 x 4.8 x 42

Tilt Range (deg)

6 / 6

Length to Fork Face (in.)

99.6-103.1

Overall Width (in.)

45.4-47.6

Overhead Guard Height (in.)

85.2-85.8

Turning Radius (in.)

90.8-94.7

Load Distance (in.)

18.9-19.5

Basic Right-Angle Stacking Aisle Width (in.)

110.3-113.8

Performance

Maximum Travel Speed - Full Load (mph)

9.9

Maximum Travel Speed - No Load (mph)

10.5

Lifting Speed - Full Load (fpm)

78.7

Lifting Speed - No Load (fpm)

98.4

Lowering Speed - Full Load (fpm)

84.7

Lowering Speed - No Load (fpm)

86.6

Gradeability - Maximum - Full Load

18-20

Gradeability - Maximum - No Load

Truck Weights

Total Weight (lb.)

9520-10996

Tires

Size - Front

25 x 9-15

Size - Rear

200 / 50-10

Wheelbase (in.)

68.5

Tread Width - Front (in.)

38.4-39.8

Underclearance -Center of Wheelbase (in.)

6.7-7.3

Brake - Service / Parking

Hydraulic/ Mechanical

Tread Width - Rear (in.)

37.6

Auxiliary Hydraulic Function Specifications

Max. Operating Pressure (psi)

2750

Battery Features

Voltage/Capacity

80 / 460
