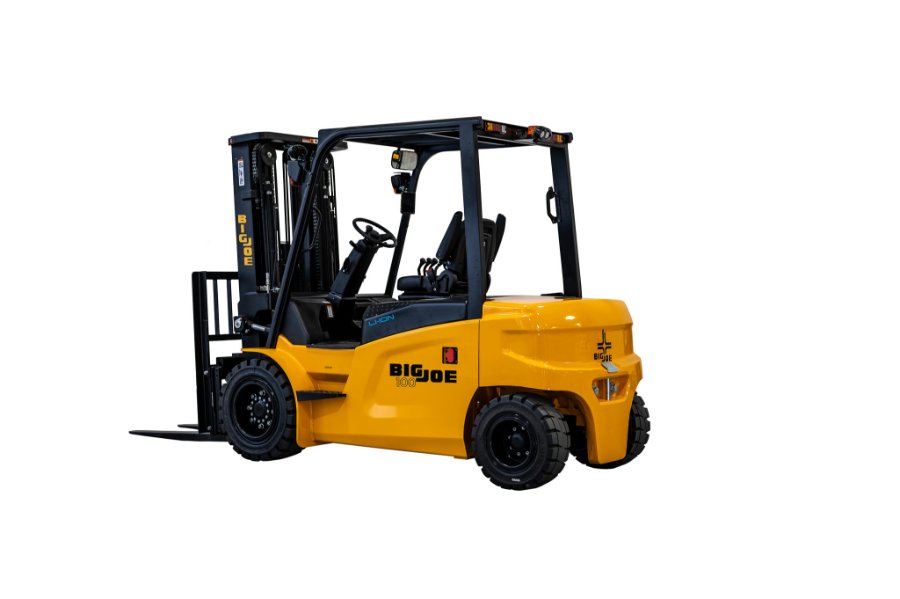

Model LPE80/LPE100S

8,000-10,000 lb. Capacity Integrated Lithium-Ion Four-Wheel Pneumatic Electric Forklift

Big returns with integrated lithium-ion.

Ready to stop spending money on fuel and expensive engine maintenance? The LPE80-100S series is equipped with Big Joe’s purpose-built, integrated Lithium-ion battery, so operation is smooth, quiet and cost-effective. A single, brushless AC drive motor provides precise control. The long wheelbase and wide, pneumatic-shaped solid tires contribute to a stable ride. The LPE80-100S series is the ideal electric solution for light to moderate duty applications that need to move those larger loads. With standard onboard charging and over-the-air telematics, going electric with Big Joe is an easy choice.

Request A Quote Request Rental Quote

Apply For Financing

Specifications

General Data

Load Capacity (lbs./kgs.)

8000-10000

Load Center

24 (600)

Power Type

Battery

Operator Position

Seated Rider

Tire Type

Pneumatic-Shaped Solid

Wheels (x=driven)

2x / 2

Exterior Dimensions

Free-Lift (in.)

44.5

Fork Size (T x W x L) (in.)

2.2 x 6 48

Tilt Range (deg)

6 / 5

Length to Fork Face (in.)

114.2

Overall Width (in.)

Mast Lowered Height (in.)

Mast Extended Height (in.)

232

Overhead Guard Height (in.)

88.6

Turning Radius (in.)

105.3

Load Distance (in.)

21.8

Basic Right-Angle Stacking Aisle Width (in.)

127.1

Performance

Maximum Travel Speed - Full Load (mph)

9.9

Maximum Travel Speed - No Load (mph)

11.2

Lifting Speed - Full Load (fpm)

Lifting Speed - No Load (fpm)

88.6

Lowering Speed - Full Load (fpm)

88.6

Lowering Speed - No Load (fpm)

100.4

Drawbar Pull - Max. - Full Load (fpm)

26000

Drawbar Pull - Max. - No Load (fpm)

26000

Gradeability - Maximum - Full Load

Gradeability - Maximum - No Load

Truck Weights

Total Weight (lb.)

14960-15400

Tires

Size - Front

28 x 12.5-15

Size - Rear

23 x 10-12

Wheelbase (in.)

78.7

Tread Width - Front (in.)

48.4

Underclearance -Center of Wheelbase (in.)

5.9

Brake - Service / Parking

Dry Drum/ Mechanical

Tread Width - Rear (in.)

41.7

Auxiliary Hydraulic Function Specifications

Max. Operating Pressure (psi)

2750

Battery Features

Voltage/Capacity

80 / 460
