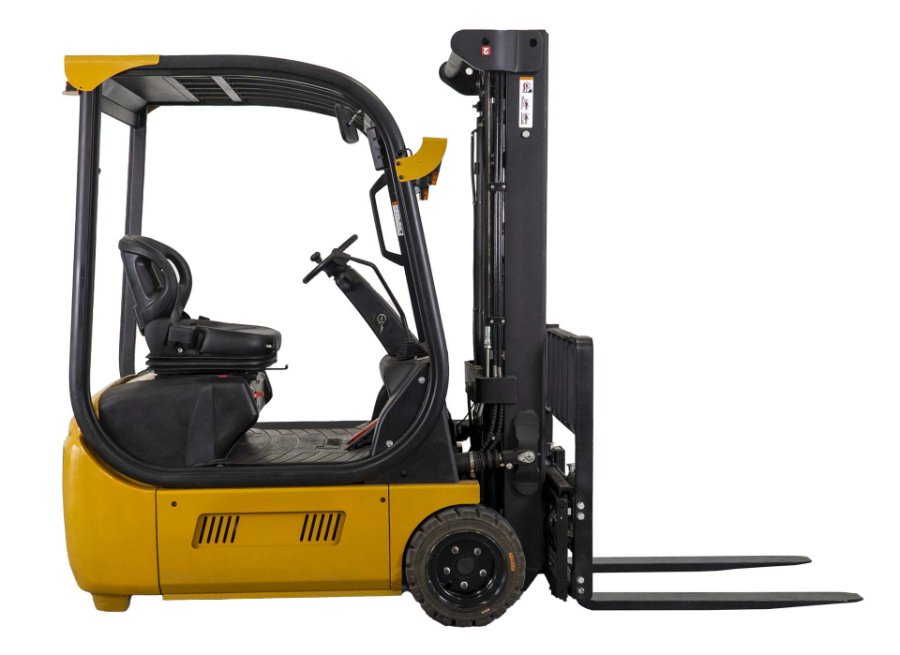

Model LVE40

4,000 lb. Capacity Integrated Lithium-Ion Three-Wheel Pneumatic Electric Forklift

Integrated lithium-ion provides simplicity and reduces cost.

Many businesses know that it takes lithium-ion to get the most efficiency, uptime and cost effectiveness out of an electric forklift. And now customers are learning that it takes an integrated power source for simplicity of operation and optimal ergonomics. The Big Joe LVE40 delivers all of the above—an optimal package that supports the operator while driving down cost of operations. Big Joe is one of the few suppliers to develop and produce both forklift and battery, so customers have one expert supplier to help from end to end.

Request A Quote Request Rental Quote

Apply For Financing

Features

Specifications

General Data

Load Capacity (lbs./kgs.)

4000

Load Center

24 (600)

Power Type

Battery

Operator Position

Seated Rider

Tire Type

Pneumatic-Shaped Solid

Wheels (x=driven)

2x / 2

Exterior Dimensions

Free-Lift (in.)

60.2

Fork Size (T x W x L) (in.)

1.6 x 4.8 x 42.1

Tilt Range (deg)

5 / 6

Length to Fork Face (in.)

Overall Width (in.)

45.3

Overhead Guard Height (in.)

84.3

Turning Radius (in.)

63.2

Basic Right-Angle Stacking Aisle Width (in.)

130.8

Performance

Maximum Travel Speed - Full Load (mph)

9.3

Maximum Travel Speed - No Load (mph)

9.9

Lifting Speed - Full Load (fpm)

68.9

Lifting Speed - No Load (fpm)

84.6

Lowering Speed - Full Load (fpm)

86.6

Lowering Speed - No Load (fpm)

72.8

Gradeability - Maximum - Full Load

Gradeability - Maximum - No Load

Truck Weights

Total Weight (lb.)

8415

Tires

Size - Front

200/50-10

Size - Rear

15 x 4.5-8

Wheelbase (in.)

53.5

Tread Width - Front (in.)

36.9

Underclearance -Center of Wheelbase (in.)

4.1

Brake - Service / Parking

Regenerative / Electromagnetic

Tread Width - Rear (in.)

6.9

Auxiliary Hydraulic Function Specifications

Max. Operating Pressure (psi)

3050

Battery Features

Voltage/Capacity

48 / 360

Resources

Download Brochure
