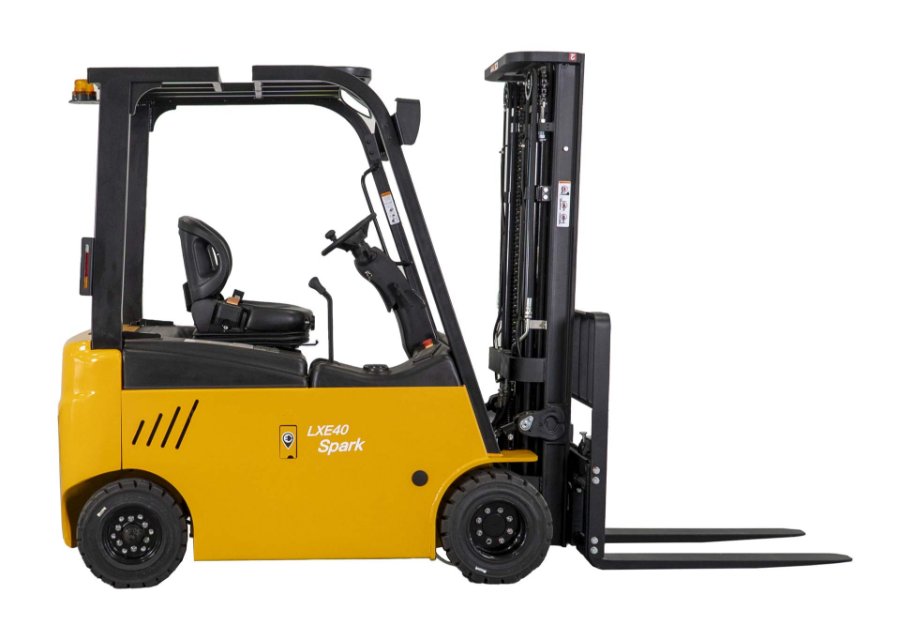

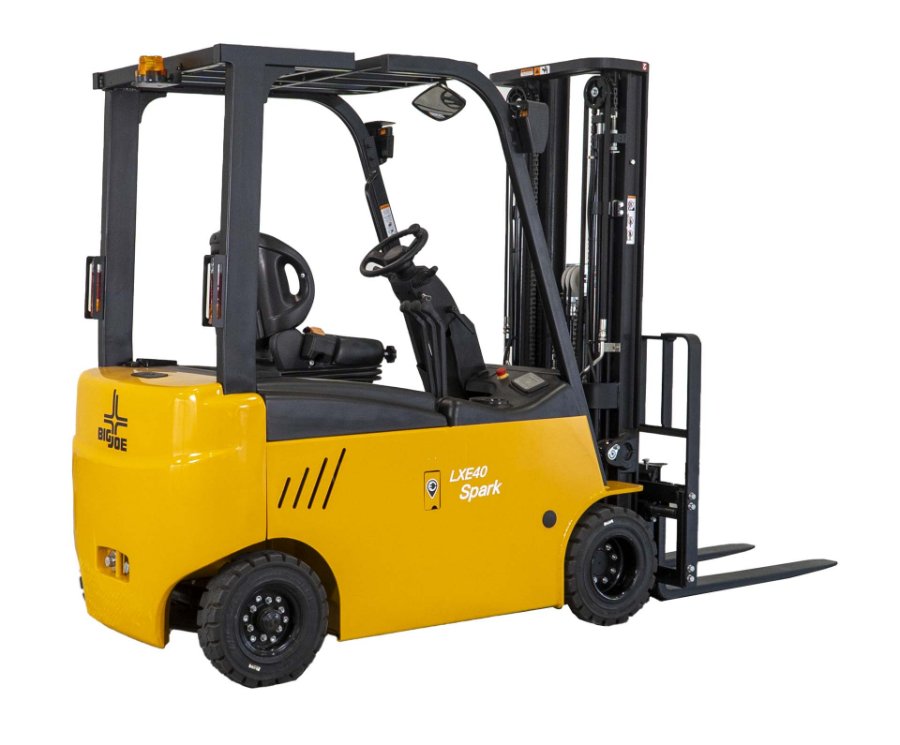

Model LXE40

4,000 lb. Capacity Integrated Lithium-Ion Four-Wheel Pneumatic Electric Forklift

Integrated lithium-ion provides simplicity and reduces cost.

Many businesses know that it takes Lithium-ion to get the most efficiency, uptime and cost effectiveness out of an electric forklift. And now customers are learning that it takes an integrated power source for simplicity of operation and optimal ergonomics. The Big Joe LXE40 delivers all of the above—an optimal package that supports the operator while driving down cost of operations. Big Joe is one of the few suppliers to develop and produce both forklift and battery, so customers have one expert supplier to help from end to end.

Request A Quote Request Rental Quote

Apply For Financing

Features

Product Highlights

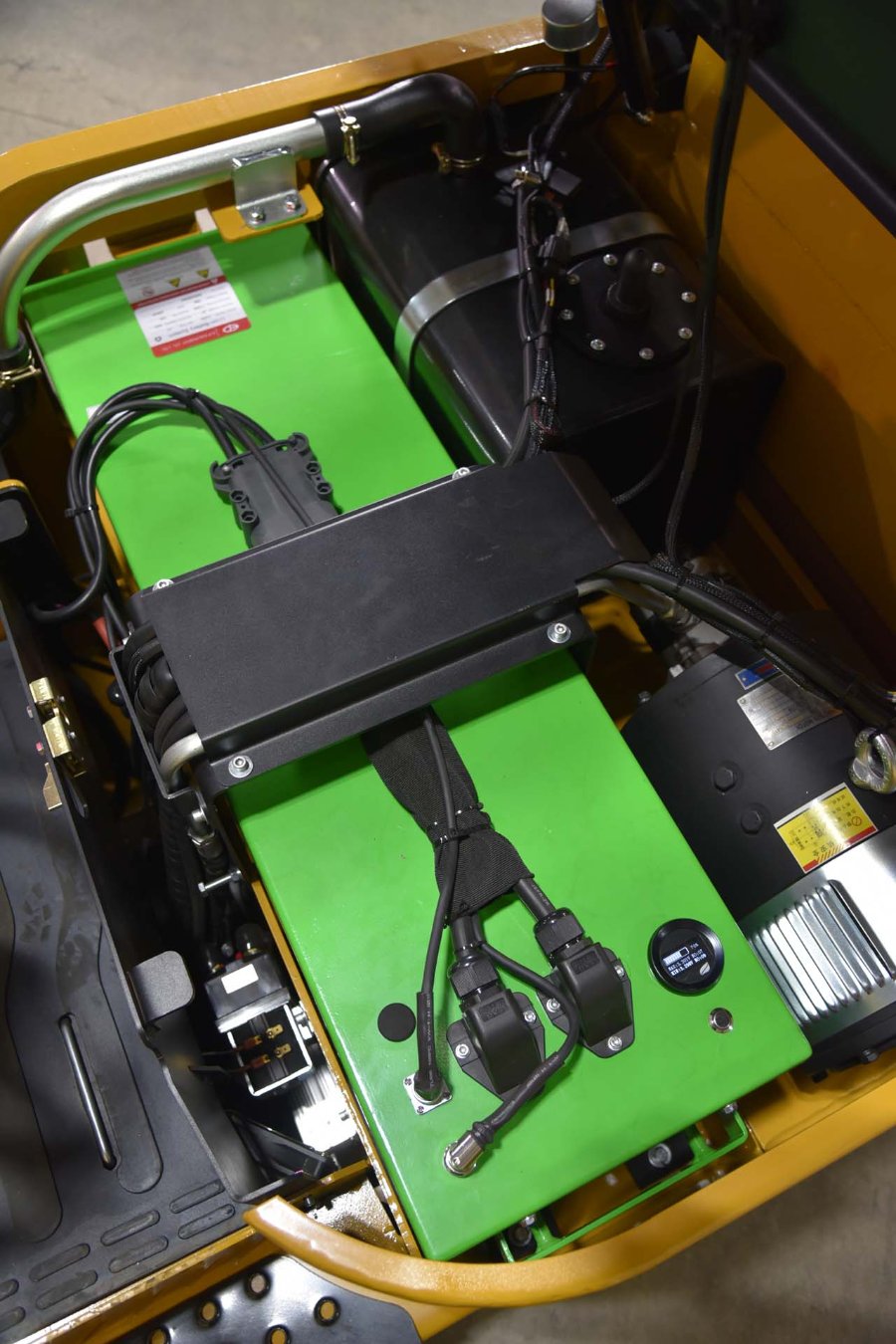

UL-Recognized Integrated Lithium-ion 17.3kWh Battery
Telemetry Monitoring System with Over-the-Air Updating
Fully-Electric and Maintenance-Free Service Brakes
Electromagnetic Parking Brake
48V AC Drive Motor
Large Step for Ease of Ingress/Egress
Low Dash for Excellent Visibility

Specifications

General Data

Load Capacity (lbs./kgs.)

4000

Load Center

24 (600)

Power Type

Battery

Operator Position

Seated Rider

Tire Type

Pneumatic-Solid Shaped

Wheels (x=driven)

2x / 2

Exterior Dimensions

Free-Lift (in.)

Fork Size (T x W x L) (in.)

1.6 x 4.8 x 42

Tilt Range (deg)

6 / 6

Length to Fork Face (in.)

86.6

Overall Width (in.)

42.5

Overhead Guard Height (in.)

81.9

Turning Radius (in.)

81.9

Load Distance (in.)

15.9

Basic Right-Angle Stacking Aisle Width (in.)

97.8

Performance

Maximum Travel Speed - Full Load (mph)

6.5

Maximum Travel Speed - No Load (mph)

8.7

Lifting Speed - Full Load (fpm)

55.1

Lifting Speed - No Load (fpm)

82.6

Lowering Speed - Full Load (fpm)

84.6

Lowering Speed - No Load (fpm)

88.6

Gradeability - Maximum - Full Load

10.5

Gradeability - Maximum - No Load

Truck Weights

Total Weight (lb.)

7892

Tires

Size - Front

200/50-10

Size - Rear

5-8

Wheelbase (in.)

57.9

Tread Width - Front (in.)

35.8

Underclearance -Center of Wheelbase (in.)

4.1

Brake - Service / Parking

Regenerative / Electromagnetic

Tread Width - Rear (in.)

36.2

Auxiliary Hydraulic Function Specifications

Max. Operating Pressure (psi)

2750

Battery Features

Voltage/Capacity

48 / 360
