Model J1 Joey

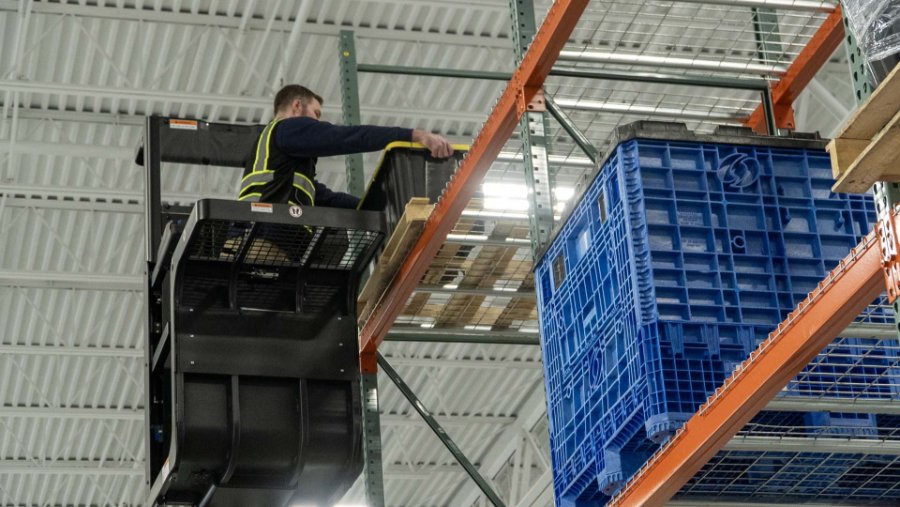

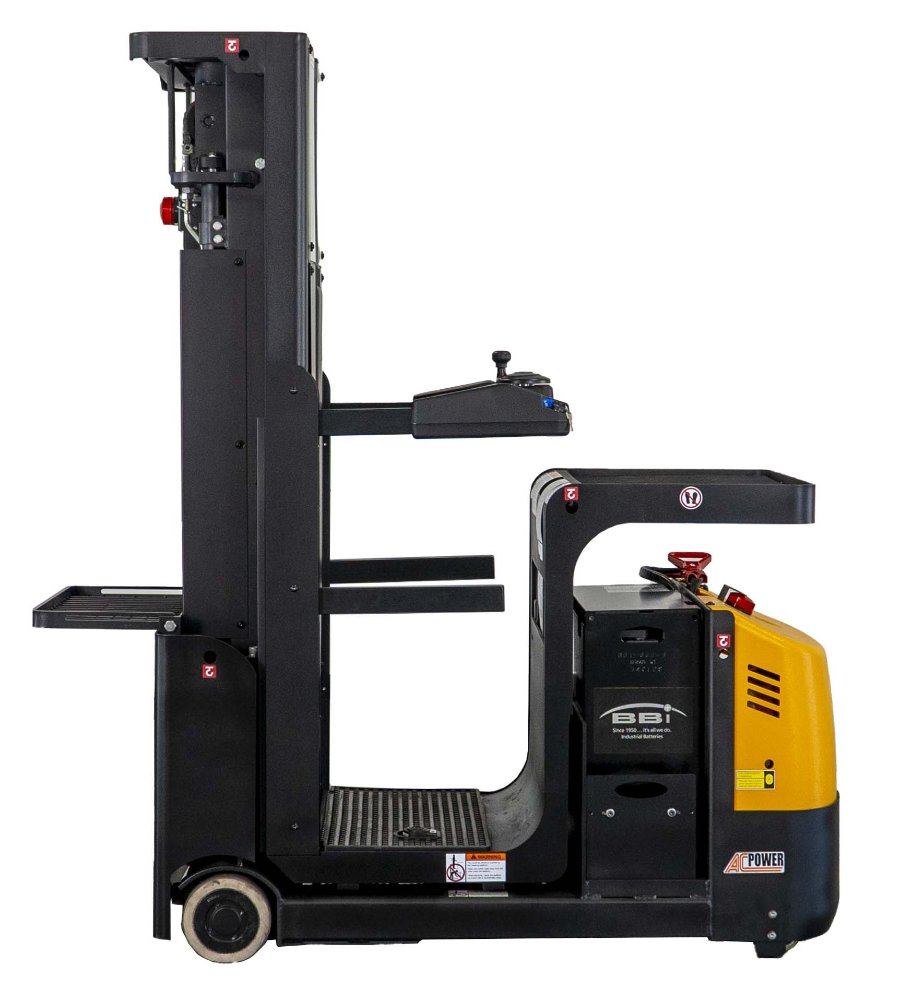

The J1 "JOEY" Task Support Vehicle combines attributes of elevating work platforms, order pickers and tuggers in a compact vehicle design.

Developed as an alternative to rolling ladders or other larger equipment, the Joey can support tasks from general overhead maintenance to order picking.

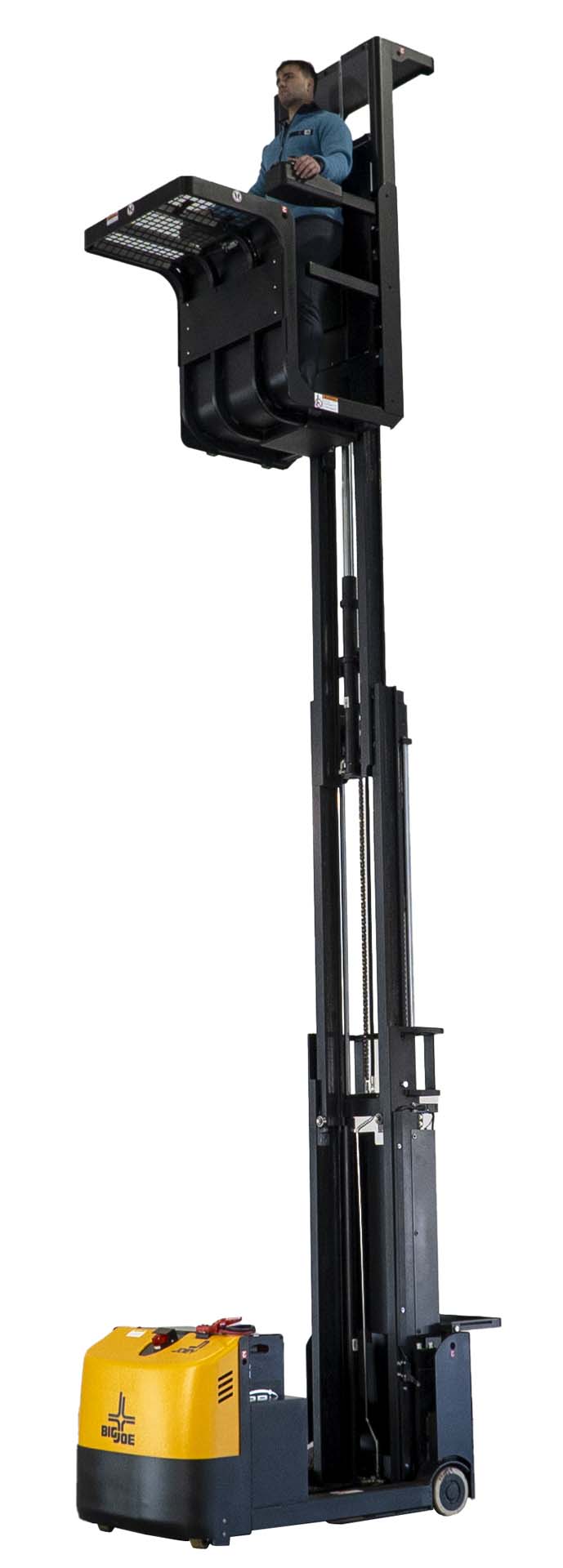

The Joey can elevate an operator up to as much as 192” from the floor, turn around in as little as 72", and can be driven at height to move from task to task. Travel is provided by a high efficiency AC drive motor that can be programmed through the onboard LCD dash, while power comes from a 224AH AGM maintenance free battery pack that supports opportunity charging from a standard 120v outlet or an industrial battery and external charger which is required on the J1-192.

Request A Quote Request Rental Quote

Apply For Financing

Features

Specifications

General Data

Load Capacity (lbs./kgs.)

1000

Power Type

24 volt AC electric with Zapi transistor control

Tire Type

Polyurethane

Exterior Dimensions

Mast Extended Height (in.)

265

Platform Lift Height (in.)

192

Maximum Load Tray top edge to floor (in.)

225

Performance

Maximum Travel Speed - Full Load (mph)

Lifting Speed - Full Load (fpm)

Truck Weights

Total Weight (lb.)

3160

Tires

Size - Front

9 x 3

Size - Rear

8 x 3

Brake - Service / Parking

Regenerative / Electromagnetic

Tire Size - Casters (front) (in.)

3 x 2

Battery Features

Battery Compartment Width (in.)
