Model J2 Joey

Low-Level Order Picker

The J2 "JOEY" Low Level Order Picker combines the compact design and exceptional maneuverability of our J1 Task Support Vehicle with attributes of a counterbalanced forklift. The result is a versatile machine that can be used for low level order picking, and staging of pallets.

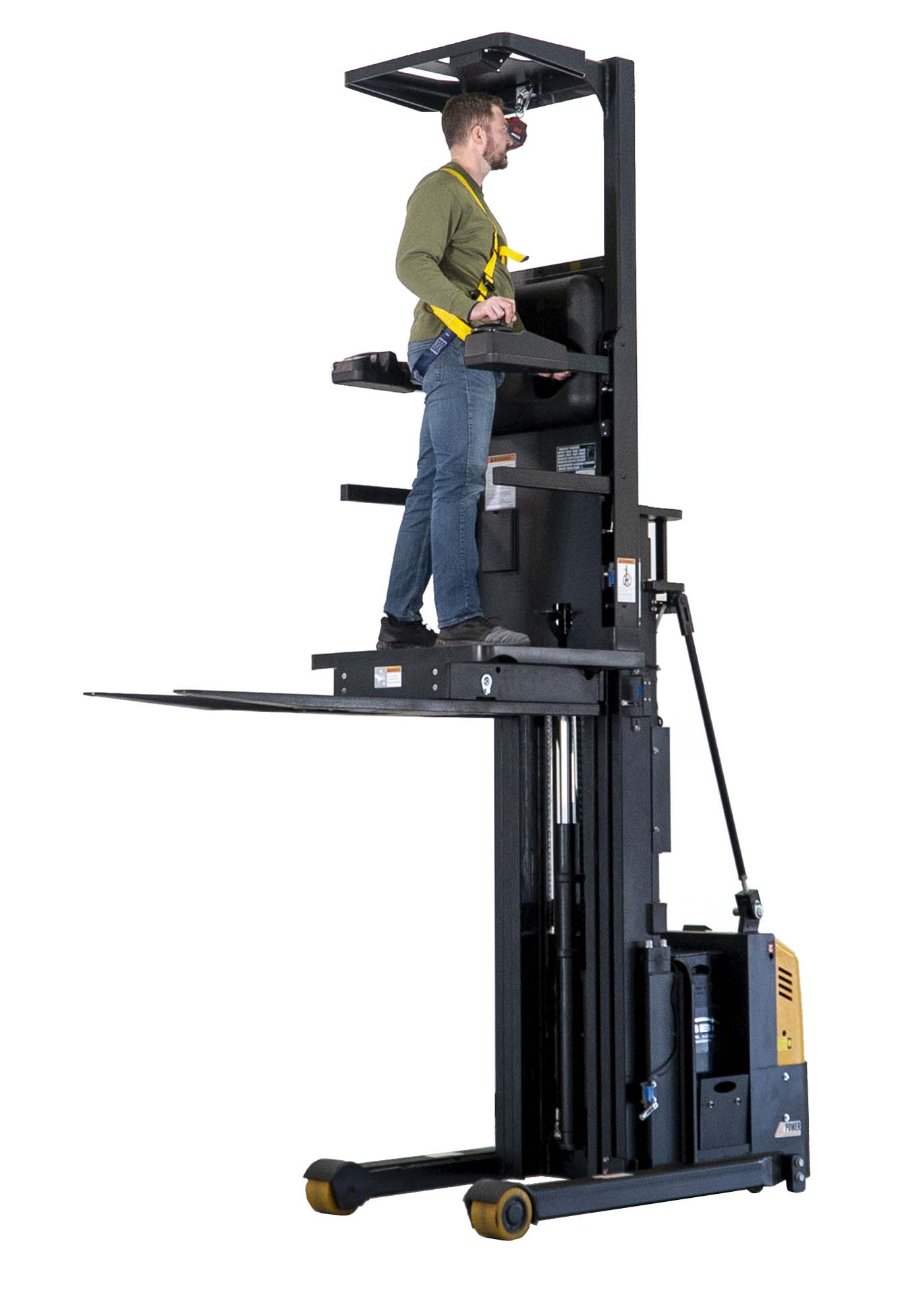

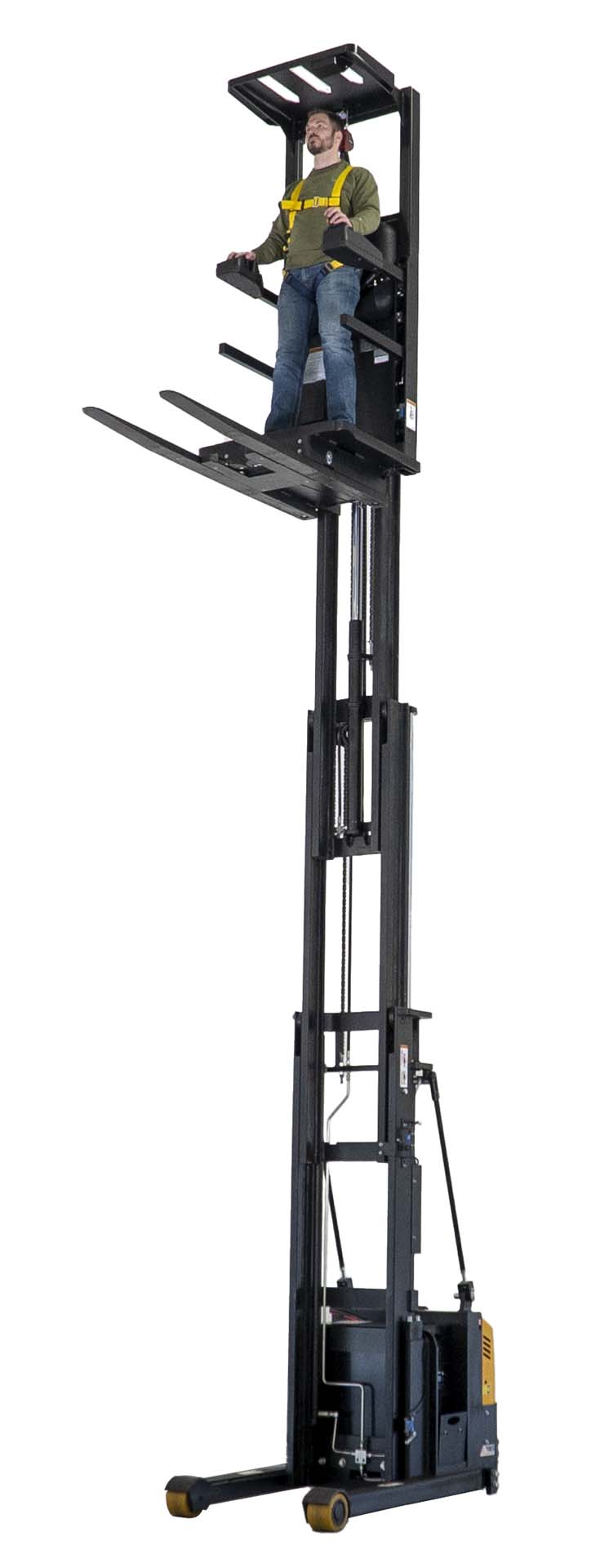

Utilizing many of the same reliable components as the J1, the J2 low level order picker can elevate an operator 48" and features a mini mast that can lift up to 2,200 lb loads to a 72" elevation. The J2 Low Level Order Picker offers travel speeds up to 4.5mph.

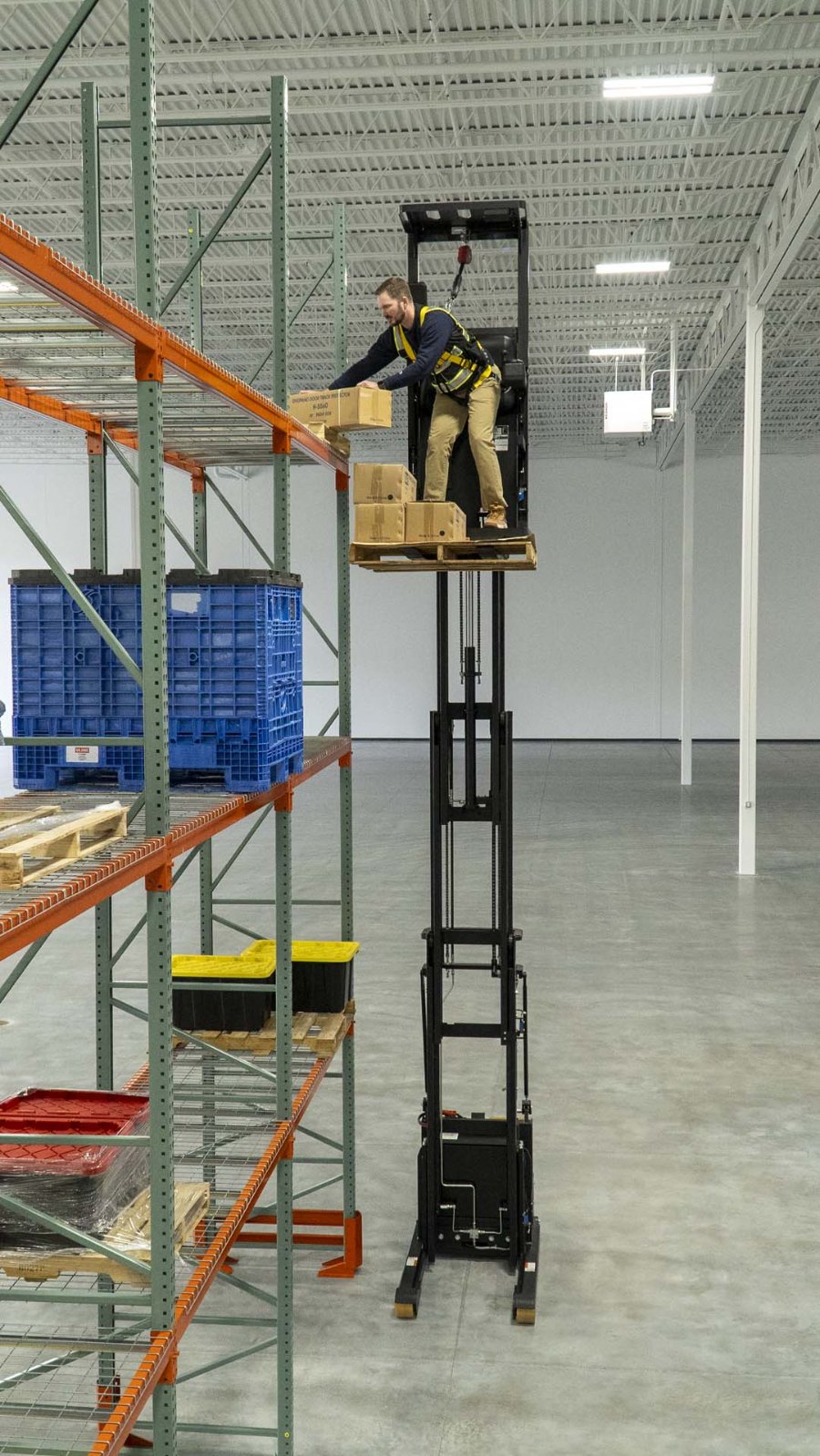

J2 Low Level Order Picker can be used to effectively order pick from low level locations and improve access to pick faces close to the floor. Travel is provided by a high efficiency AC drive motor on each unit that can be programmed through the onboard LCD dash. Power comes from a 340AH industrial battery or 224AH AGM maintenance free battery pack that is an available option.

J2-72 2,200lb. @ 24" load center on front mini mast to 72"

Request A Quote Request Rental Quote

Apply For Financing

Features

The J2 JOEY Mid-Level Order Picker Features:

LCD dash display with selectable travel settings and diagnostics
Electronic power steering with infinitely variable speed control
Finger tip controls integrated into retractable vehicle guardrails
180 degree articulating driveline with compact minimum turn radius
Optional forward controls eliminate the side guardrails

Specifications

General Data

Load Capacity (lbs./kgs.)

2200

Power Type

24 volt AC electric with Zapi transistor control

Tire Type

Polyurethane

Maximum Weight Capacity (lb.)

2,200@ 24" LC

Exterior Dimensions

Maximum Fork Height (MFH) (in.)

72"

Fork Size (T x W x L) (in.)

42 x 4

Overall Width (in.)

31.5

Mast Extended Height (in.)

101

Overall Length (in.)

99.2

Platform Lift Height (in.)

Performance

Maximum Travel Speed - Full Load (mph)

4.5

Lifting Speed - Full Load (fpm)

Truck Weights

Total Weight (lb.)

2900

Tires

Size - Front

9 x 3

Size - Rear

5.9 x 3.5

Brake - Service / Parking

Regenerative / Electromagnetic

Tire Size - Casters (front) (in.)

3 x 2

Power System

Battery Type

340AH Industrial or 224AH 5.4kWh AGM battery pack

Charger

External of Integral 120v smart charger

Battery Features

Connector (Color)

SB-175 Red Connector A12

Battery Compartment Width (in.)

Battery Weight Minimum (lb.)

700
