Model T15/T40
T15/T40

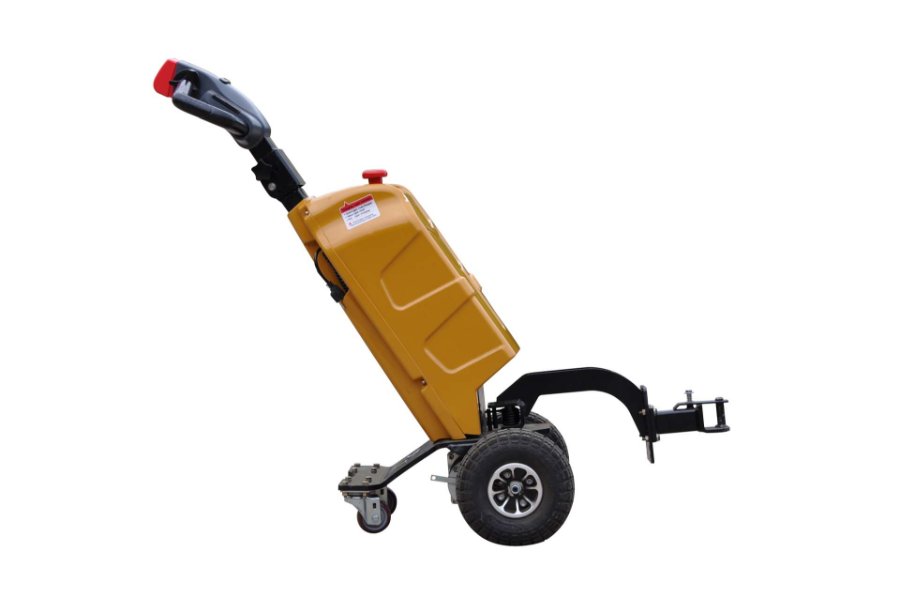

1,500 lb. or 4,000 Lb. Capacity Walkie Tugger

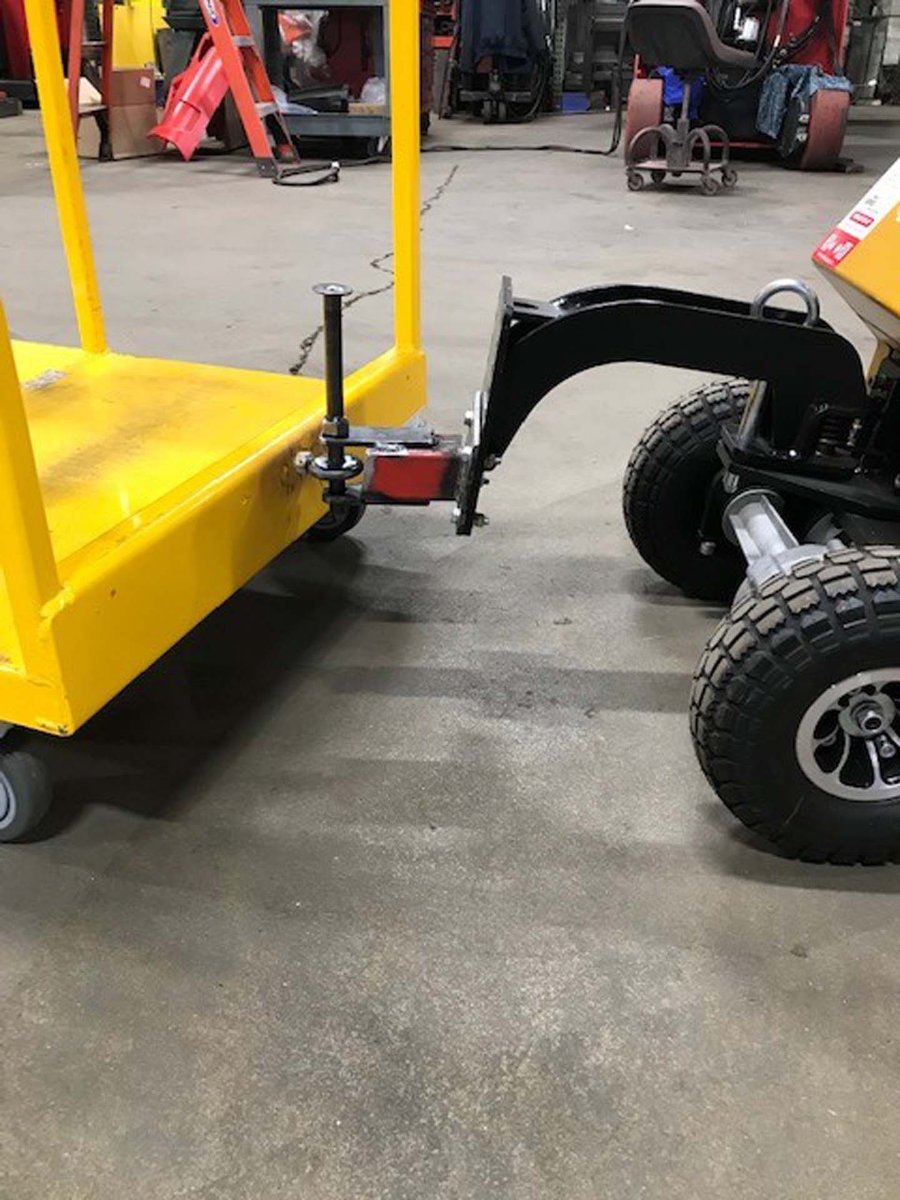

Our 1,500lb and 4,000lb capacity walkie tuggers can eliminate operator strain caused by manually pulling carts long distances. Variable travel is provided for both forward and reverse and the units come with both a frame grab and a standard pin connection. The 180 degree articulating tow arm can be locked out with a drift pin for improved control as needed.
Features
- 24volt DC drive motor and controller
- Electronic motor braking provides stopping force when not under power

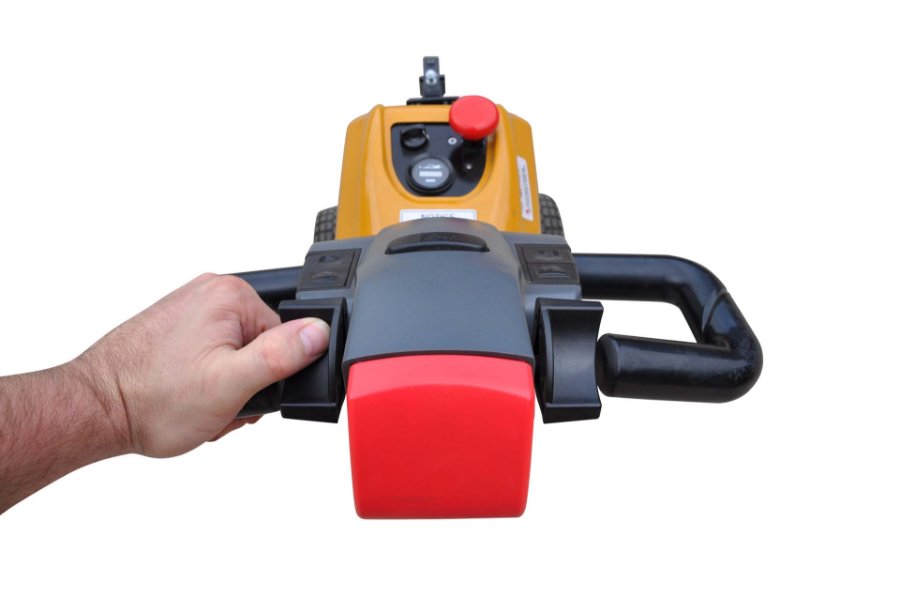

- Ergonomic handle with 3 positions, safety reversing switch, and horn
- T15 50AH polycase batteries with external 110VAC charger
- T40 20AH polycase batteries with external 110VAC charger

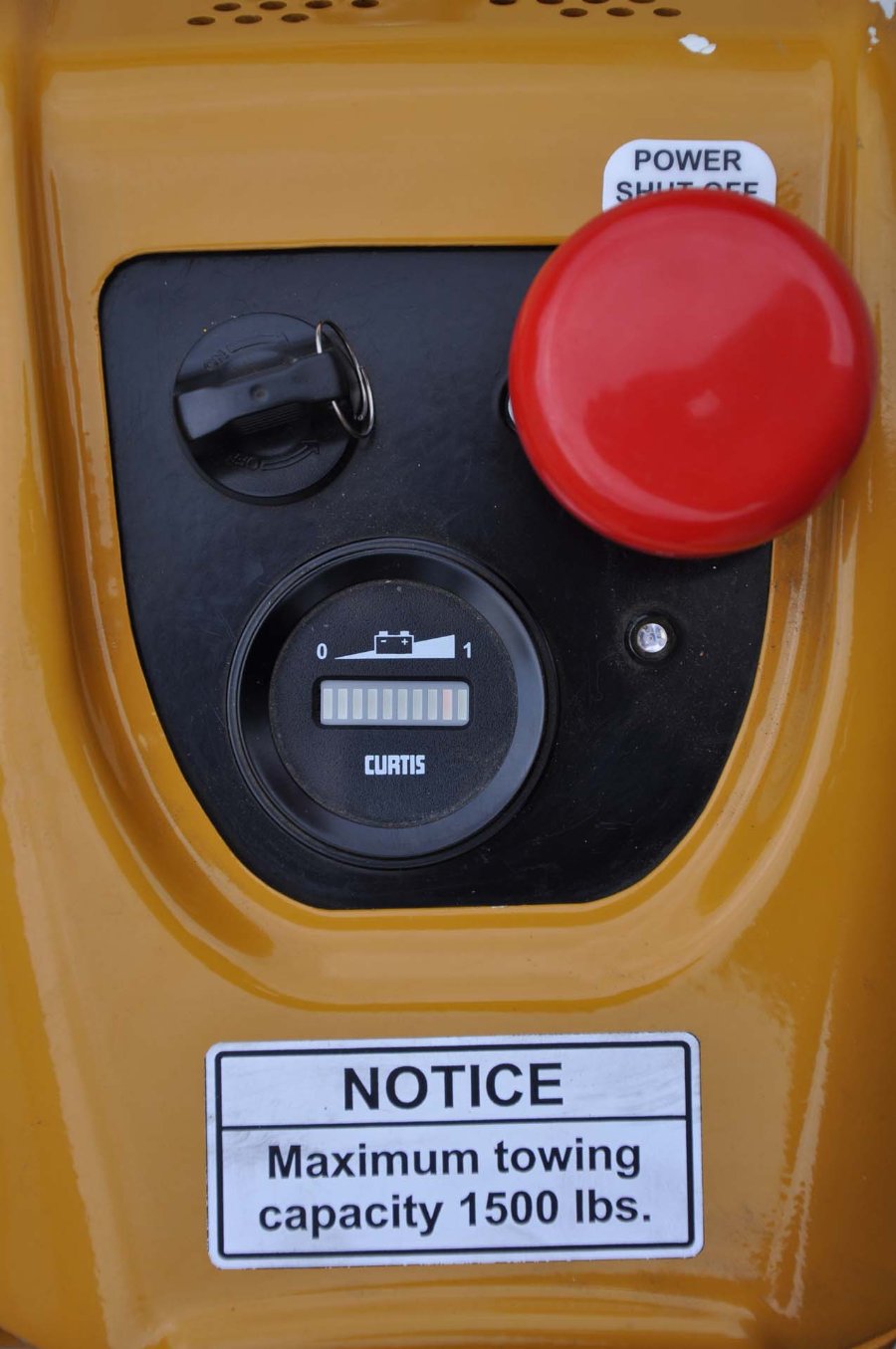

- Battery discharge indicator, emergency power disconnect, and key switch
Specifications
General Data
Load Capacity (lbs./kgs.)
1500 or 4000
Power Type
Battery
Tire Type
Pneumatic rubber / Polyurethane
Minimum Turning Radius
36
Exterior Dimensions
Overall Width (in.)
20.5
Performance
Maximum Travel Speed - Full Load (mph)
2
Maximum Travel Speed - No Load (mph)
3
Tires
Size - Front
9.8 x 3.3
Size - Rear
3 x 1.3
Wheelbase (in.)
12.4
Brake - Service / Parking
Electromagnetic
Power System
Battery Type
Maintenance free 50AH batteries / 24v 20AH battery
Battery Features
Electric Motors - Drive (60 minutes) (hp)
24-Volt DC 0.5 horsepower S2 60 minute rated electric drive motor
