3,000-5,000 lb. Lifting Capacity

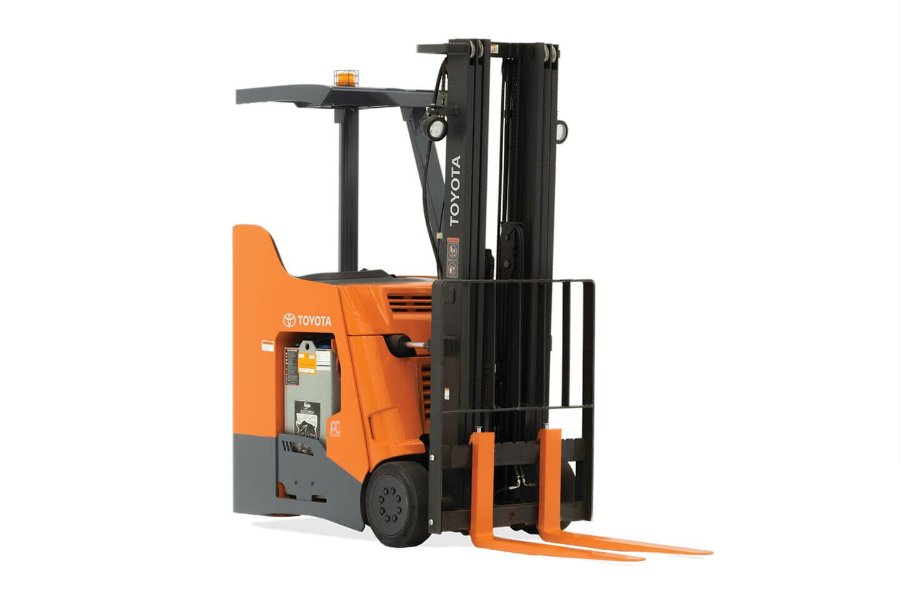

The unique dock-to-stock capability of the Toyota Stand-Up Rider Forklift makes it top of its class and one of the most versatile forklifts in Toyota’s product line. Because it is designed for 5,000 lb. loads, it is more flexible and can handle more capacity at greater heights with added durability. Its compact design allows it to seamlessly navigate narrow aisles with ease, giving you the ability to store more products in your facility. This counterbalance forklift delivers improved ergonomics, reliability, and sturdiness while reducing service intervals. The Toyota Stand-Up Rider is a multi-purpose forklift that is ready to work when you are.

Features

Stand Up to the Challenge

Designed with an angled front cover and overhead guard, Toyota’s Stand-Up Rider is engineered for increased visibility and efficiency while the forklift is in use. The standard open-view, 4-cylinder mast provides operators with a clear line of sight. This counterbalance forklift delivers top travel and lift/lower speeds with a high-performance AC drive motor.

Specifications

For more detailed, product specific specification data, select an individual model number from the chart below.

Model	Load Capacity (lbs./kgs.)	Maximum Travel Speed - Full Load (mph)	Lifting Speed - Full Load (fpm)	Gradeability - Maximum - Full Load	Overall Length (in.)
SR1-BEF30	3000	7.2	55	15	66.3 - 71.1
SR1-BET30	3000	7.5	55	15	66.3 - 71.1
SR1-BEF35	3500	7.2	55	15	66.3 - 71.1
SR1-BEF40	4000	7.2	55	15	71.1 - 73.8
SR1-BET35	3500	7.2	55	15	66.3 - 71.1
SR1-BET40	4000	7.2	55	15	71.1 - 73.8
SR1-HPF30	3000	8.0	70	15	66.5 - 71.2
SR1-HPT30	3000	8.0	70	15	66.5 - 71.2
SR1-HPM30	3000	8.0	70	15	71.8 - 73.3
SR1-HPF35	3500	8.0	70	15	66.5 - 71.2
SR1-HPT35	3500	8.0	70	15	66.5 - 71.2
SR1-HPM35	3500	8.0	70	15	71.8 - 73.3
SR1-HPF40	4000	8.0	65	15	71.2 - 74
SR1-HPT40	4000	8.0	65	15	71.2 - 74
SR1-HPM40	4000	8.0	65	15	71.8 - 76.1
SR1-HPF50	5000	8.0	65	15	76.7
SR1-HPT50	5000	8.0	65	15	76.7
SR1-HPM50	4000	8.0	65	15	77 - 78.6

Model

SR1-BEF30

Load Capacity (lbs./kgs.)

3000

Maximum Travel Speed - Full Load (mph)

7.2

Lifting Speed - Full Load (fpm)

Gradeability - Maximum - Full Load

Overall Length (in.)

66.3 - 71.1

Model

SR1-BET30

Load Capacity (lbs./kgs.)

3000

Maximum Travel Speed - Full Load (mph)

7.5

Lifting Speed - Full Load (fpm)

Gradeability - Maximum - Full Load

Overall Length (in.)

66.3 - 71.1

Model

SR1-BEF35

Load Capacity (lbs./kgs.)

3500

Maximum Travel Speed - Full Load (mph)

7.2

Lifting Speed - Full Load (fpm)

Gradeability - Maximum - Full Load

Overall Length (in.)

66.3 - 71.1

Model

SR1-BEF40

Load Capacity (lbs./kgs.)

4000

Maximum Travel Speed - Full Load (mph)

7.2

Lifting Speed - Full Load (fpm)

Gradeability - Maximum - Full Load

Overall Length (in.)

71.1 - 73.8

Model

SR1-BET35

Load Capacity (lbs./kgs.)

3500

Maximum Travel Speed - Full Load (mph)

7.2

Lifting Speed - Full Load (fpm)

Gradeability - Maximum - Full Load

Overall Length (in.)

66.3 - 71.1

Model

SR1-BET40

Load Capacity (lbs./kgs.)

4000

Maximum Travel Speed - Full Load (mph)

7.2

Lifting Speed - Full Load (fpm)

Gradeability - Maximum - Full Load

Overall Length (in.)

71.1 - 73.8

Model

SR1-HPF30

Load Capacity (lbs./kgs.)

3000

Maximum Travel Speed - Full Load (mph)

8.0

Lifting Speed - Full Load (fpm)

Gradeability - Maximum - Full Load

Overall Length (in.)

66.5 - 71.2

Model

SR1-HPT30

Load Capacity (lbs./kgs.)

3000

Maximum Travel Speed - Full Load (mph)

8.0

Lifting Speed - Full Load (fpm)

Gradeability - Maximum - Full Load

Overall Length (in.)

66.5 - 71.2

Model

SR1-HPM30

Load Capacity (lbs./kgs.)

3000

Maximum Travel Speed - Full Load (mph)

8.0

Lifting Speed - Full Load (fpm)

Gradeability - Maximum - Full Load

Overall Length (in.)

71.8 - 73.3

Model

SR1-HPF35

Load Capacity (lbs./kgs.)

3500

Maximum Travel Speed - Full Load (mph)

8.0

Lifting Speed - Full Load (fpm)

Gradeability - Maximum - Full Load

Overall Length (in.)

66.5 - 71.2

Model

SR1-HPT35

Load Capacity (lbs./kgs.)

3500

Maximum Travel Speed - Full Load (mph)

8.0

Lifting Speed - Full Load (fpm)

Gradeability - Maximum - Full Load

Overall Length (in.)

66.5 - 71.2

Model

SR1-HPM35

Load Capacity (lbs./kgs.)

3500

Maximum Travel Speed - Full Load (mph)

8.0

Lifting Speed - Full Load (fpm)

Gradeability - Maximum - Full Load

Overall Length (in.)

71.8 - 73.3

Model

SR1-HPF40

Load Capacity (lbs./kgs.)

4000

Maximum Travel Speed - Full Load (mph)

8.0

Lifting Speed - Full Load (fpm)

Gradeability - Maximum - Full Load

Overall Length (in.)

71.2 - 74

Model

SR1-HPT40

Load Capacity (lbs./kgs.)

4000

Maximum Travel Speed - Full Load (mph)

8.0

Lifting Speed - Full Load (fpm)

Gradeability - Maximum - Full Load

Overall Length (in.)

71.2 - 74

Model

SR1-HPM40

Load Capacity (lbs./kgs.)

4000

Maximum Travel Speed - Full Load (mph)

8.0

Lifting Speed - Full Load (fpm)

Gradeability - Maximum - Full Load

Overall Length (in.)

71.8 - 76.1

Model

SR1-HPF50

Load Capacity (lbs./kgs.)

5000

Maximum Travel Speed - Full Load (mph)

8.0

Lifting Speed - Full Load (fpm)

Gradeability - Maximum - Full Load

Overall Length (in.)

76.7

Model

SR1-HPT50

Load Capacity (lbs./kgs.)

5000

Maximum Travel Speed - Full Load (mph)

8.0

Lifting Speed - Full Load (fpm)

Gradeability - Maximum - Full Load

Overall Length (in.)

76.7

Model

SR1-HPM50

Load Capacity (lbs./kgs.)

4000

Maximum Travel Speed - Full Load (mph)

8.0

Lifting Speed - Full Load (fpm)

Gradeability - Maximum - Full Load

Overall Length (in.)

77 - 78.6
