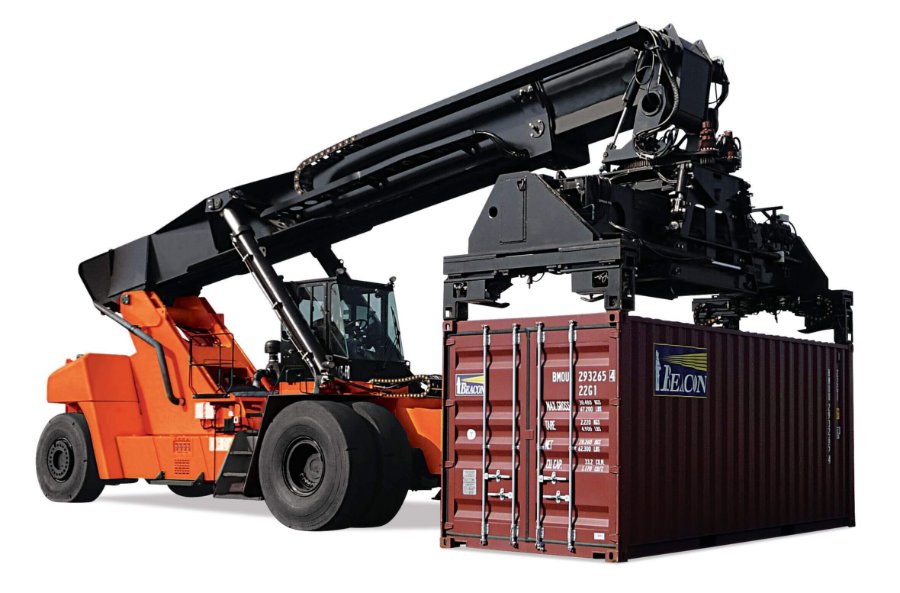

Reach Stacker Container Handler
Up to 99,000 lb. Lifting Capacity
The Toyota Reach Stacker Container Handler is used to handle a diverse range of heavy-lift applications, from loading and unloading trailers to transporting wind turbine components. The Toyota Reach Stacker Container Handler can stack up to five containers high with a reach depth of three rows and lifting capacity of up 99,000 lbs.
Features
Specifications
For more detailed, product specific specification data, select an individual model number from the chart below.
| Model | Load Capacity (lbs./kgs.) | Maximum Travel Speed - Full Load (mph) | Lifting Speed - Full Load (fpm) | Gradeability - Maximum - Full Load | Basic Right-Angle Stacking Aisle Width (in.) |
|---|---|---|---|---|---|
| THD9900-R60 | 90000 First Row / 60000 Second Row / 30000 Third Row | 19.3 | 60 | 18.2 | 480 / 565 |
| THD9900-R68 | 90000 First Row / 68000 Second Row / 34000 Third Row | 19.3 | 60 | 17.5 | 480 / 565 |
| THD9900-R73 | 99000 First Row / 72600 Second Row / 38500 Third Row | 19.3 | 60 | 17.2 | 480 / 565 |
| THD9900-R77 | 99000 First Row / 77000 Second Row / 44000 Third Row | 19.3 | 60 | 16.9 | 480 / 565 |
| THD9900-R85 | 99000 First Row / 85000 Second Row / 47000 Third Row | 20.1 | 60 | 15.8 | 480 / 565 |
| THD9900-R90 | 99000 First Row / 90000 Second Row / 68000 Third Row | 20.1 | 60 | 15.6 | 480 / 565 |
Performance Data
Model
THD9900-R60Load Capacity (lbs./kgs.)
90000 First Row / 60000 Second Row / 30000 Third Row
Maximum Travel Speed - Full Load (mph)
19.3
Lifting Speed - Full Load (fpm)
60
Gradeability - Maximum - Full Load
18.2
Basic Right-Angle Stacking Aisle Width (in.)
480 / 565
Model
THD9900-R68Load Capacity (lbs./kgs.)
90000 First Row / 68000 Second Row / 34000 Third Row
Maximum Travel Speed - Full Load (mph)
19.3
Lifting Speed - Full Load (fpm)
60
Gradeability - Maximum - Full Load
17.5
Basic Right-Angle Stacking Aisle Width (in.)
480 / 565
Model
THD9900-R73Load Capacity (lbs./kgs.)
99000 First Row / 72600 Second Row / 38500 Third Row
Maximum Travel Speed - Full Load (mph)
19.3
Lifting Speed - Full Load (fpm)
60
Gradeability - Maximum - Full Load
17.2
Basic Right-Angle Stacking Aisle Width (in.)
480 / 565
Model
THD9900-R77Load Capacity (lbs./kgs.)
99000 First Row / 77000 Second Row / 44000 Third Row
Maximum Travel Speed - Full Load (mph)
19.3
Lifting Speed - Full Load (fpm)
60
Gradeability - Maximum - Full Load
16.9
Basic Right-Angle Stacking Aisle Width (in.)
480 / 565
Model
THD9900-R85Load Capacity (lbs./kgs.)
99000 First Row / 85000 Second Row / 47000 Third Row
Maximum Travel Speed - Full Load (mph)
20.1
Lifting Speed - Full Load (fpm)
60
Gradeability - Maximum - Full Load
15.8
Basic Right-Angle Stacking Aisle Width (in.)
480 / 565
Model
THD9900-R90Load Capacity (lbs./kgs.)
99000 First Row / 90000 Second Row / 68000 Third Row
Maximum Travel Speed - Full Load (mph)
20.1
Lifting Speed - Full Load (fpm)
60
Gradeability - Maximum - Full Load
15.6
Basic Right-Angle Stacking Aisle Width (in.)
480 / 565
