2,500-4,500 lb. Lifting Capacity

Toyota’s Electric Reach Truck delivers on efficiency and performance like never before. This reach truck comes with unique features coupled with the longstanding productivity, ergonomics, and low cost of ownership you expect from Toyota. The Toyota Reach Truck provides optimal visibility when reaching a second-level pallet position. The open view mast utilizes a 4-cylinder design to maximize forward visibility. Rigid mast construction helps minimize mast sway for precise load handling at maximum lift heights. This reach truck enables you to reach higher, work smarter, and be comfortably productive whether you’re moving from dock-to-stock, stock-to-dock, or anywhere in between.

Request A Quote Request Rental Quote

Apply For Financing

Features

Built to Your Specifications

With over 250 options and nearly limitless special design capabilities, Toyota’s Reach Truck can be tailored to meet your exact specifications. Lights, alarms, fork types, attachments, and many other accessories and productivity-enhancing features are configurable to meet your unique material handling needs.

The Toyota Reach Truck also comes with a standard 7” touchscreen display with programmable performance. Travel and lift speeds, lift heights, and many other operational characteristics are adjustable to meet the needs of operators and your facility

Taking a Stance

Whether you’re working on docks, navigating narrow aisles, or stacking at high lift heights, Toyota’s Reach Truck offers versatile solutions designed to tackle your specific warehouse challenges.

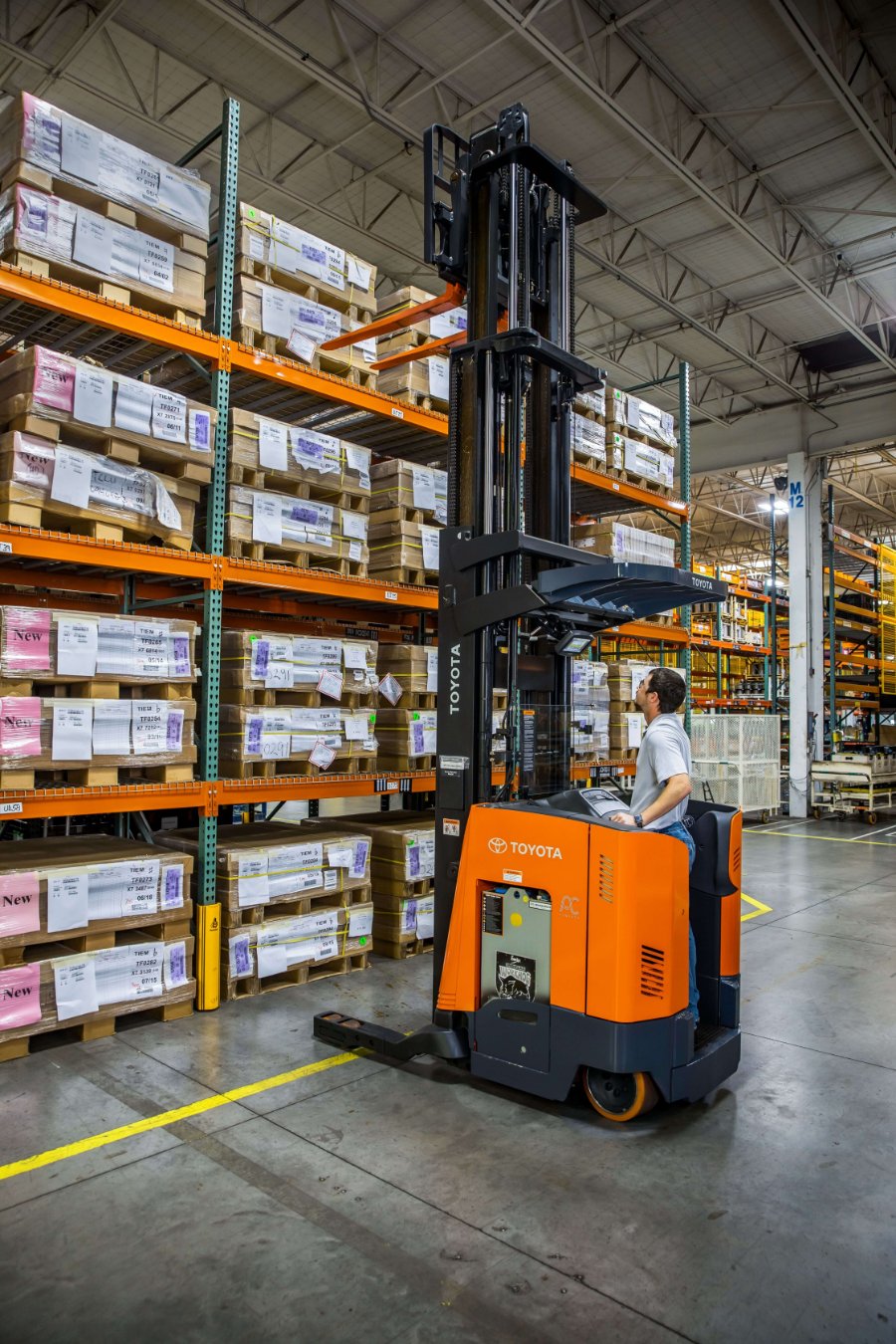

Fore-Aft Stance:

Operator faces directly towards the direction of travel and load handling
Optional secondary control handle available for tractor-first travel

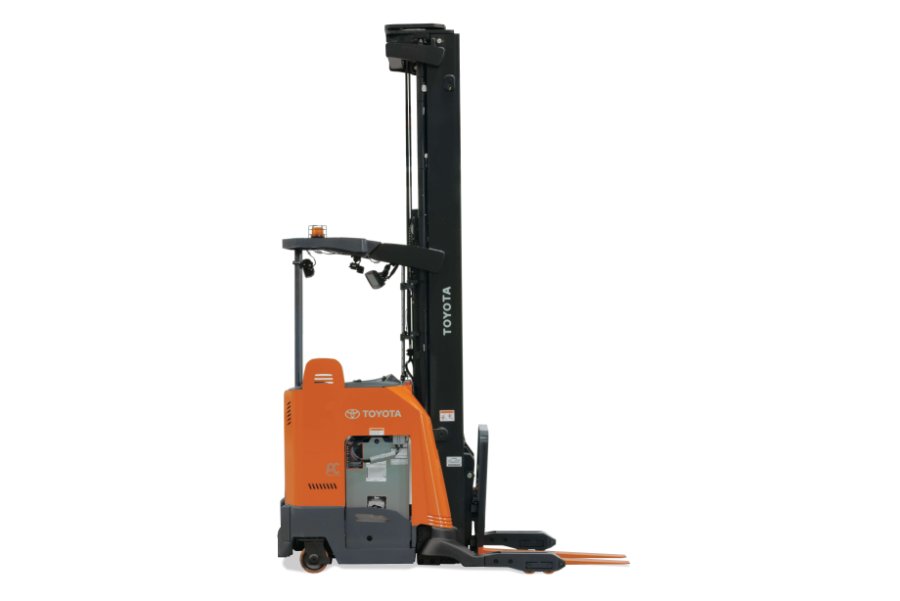

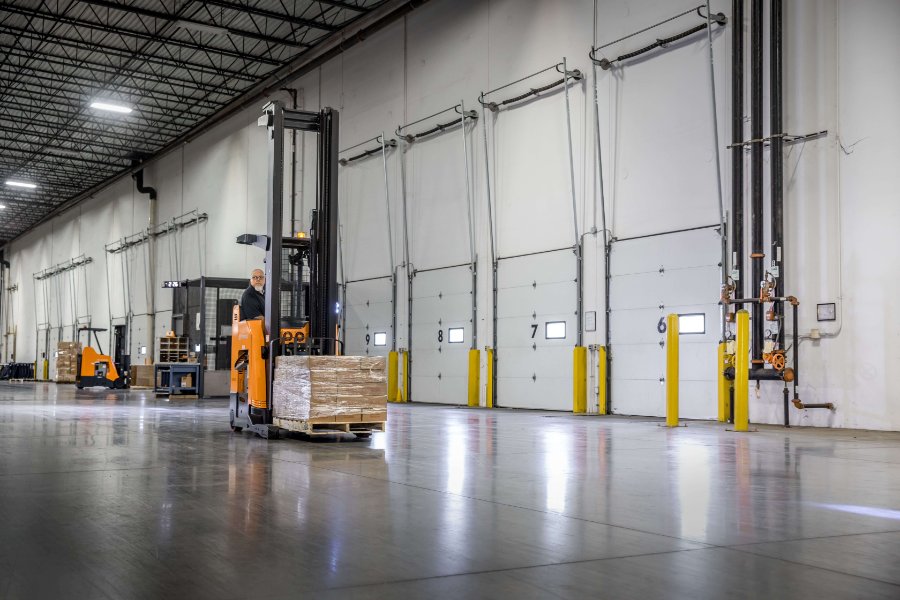

Sidestance:

Operator stands parallel to the direction of travel

Sit/Stand:

Operator stands parallel to the direction of travel when or utilizes flip down seat. This is available on the RF1-HCZ models only.

Quality, Durability Value

Toyota’s Reach Truck comes with a 24/36-volt electrical system along with an AC Drive and lift system. This product comes with a multifunction control handle that allows for simultaneous use of hydraulic functions and travels in one intuitive and ergonomic package. Rigid mast construction helps minimize mast sway for precise load handling at maximum lift heights. An inertial dampener minimizes mast sway when right angle stacking at high lift heights for exceptional control and reduced product and racking damage.

Specifications

For more detailed, product specific specification data, select an individual model number from the chart below.

Model	Voltage/Capacity	Load Capacity (lbs./kgs.)	Maximum Travel Speed - Full Load (mph)	Lifting Speed - Full Load (fpm)
RF1-BE1X35	24 / 1080	3500	5.5	40
RF1-BE1X40	24 / 1080	4000	5.5	40
RF1-BE2X25	24 / 1080	2500	6.5	40
RF1-BH1X35	36 / 1240	3500	5.5	65
RF1-BH1X40	36 / 1240	4000	5.5	65
RF1-BH1X45	36 / 1240	4500	5.5	65
RF1-BH2X25	36 / 1240	2500	6	75
RF1-BH2X30	36 / 1240	3000	6	78
RF1-HP1X45	36 / 1240	4500	6	95
RF1-HP1Z45	36 / 1240	4500	6	95
RF1-HP2X32	36 / 1240	3200	6	110
RF1-HP2Z32	36 / 1240	3200	6	110
RF1-SD1X35	36 / 1240	3500	6	78
RF1-SD1X45	36 / 1240	4500	5	80
RF1-SD1Z45	36 / 1240	4500	5	80
RF1-SD2Z32	36 / 1240	3200	6	90

Model

RF1-BE1X35

Voltage/Capacity

24 / 1080

Load Capacity (lbs./kgs.)

3500

Maximum Travel Speed - Full Load (mph)

5.5

Lifting Speed - Full Load (fpm)

Model

RF1-BE1X40

Voltage/Capacity

24 / 1080

Load Capacity (lbs./kgs.)

4000

Maximum Travel Speed - Full Load (mph)

5.5

Lifting Speed - Full Load (fpm)

Model

RF1-BE2X25

Voltage/Capacity

24 / 1080

Load Capacity (lbs./kgs.)

2500

Maximum Travel Speed - Full Load (mph)

6.5

Lifting Speed - Full Load (fpm)

Model

RF1-BH1X35

Voltage/Capacity

36 / 1240

Load Capacity (lbs./kgs.)

3500

Maximum Travel Speed - Full Load (mph)

5.5

Lifting Speed - Full Load (fpm)

Model

RF1-BH1X40

Voltage/Capacity

36 / 1240

Load Capacity (lbs./kgs.)

4000

Maximum Travel Speed - Full Load (mph)

5.5

Lifting Speed - Full Load (fpm)

Model

RF1-BH1X45

Voltage/Capacity

36 / 1240

Load Capacity (lbs./kgs.)

4500

Maximum Travel Speed - Full Load (mph)

5.5

Lifting Speed - Full Load (fpm)

Model

RF1-BH2X25

Voltage/Capacity

36 / 1240

Load Capacity (lbs./kgs.)

2500

Maximum Travel Speed - Full Load (mph)

Lifting Speed - Full Load (fpm)

Model

RF1-BH2X30

Voltage/Capacity

36 / 1240

Load Capacity (lbs./kgs.)

3000

Maximum Travel Speed - Full Load (mph)

Lifting Speed - Full Load (fpm)

Model

RF1-HP1X45

Voltage/Capacity

36 / 1240

Load Capacity (lbs./kgs.)

4500

Maximum Travel Speed - Full Load (mph)

Lifting Speed - Full Load (fpm)

Model

RF1-HP1Z45

Voltage/Capacity

36 / 1240

Load Capacity (lbs./kgs.)

4500

Maximum Travel Speed - Full Load (mph)

Lifting Speed - Full Load (fpm)

Model

RF1-HP2X32

Voltage/Capacity

36 / 1240

Load Capacity (lbs./kgs.)

3200

Maximum Travel Speed - Full Load (mph)

Lifting Speed - Full Load (fpm)

110

Model

RF1-HP2Z32

Voltage/Capacity

36 / 1240

Load Capacity (lbs./kgs.)

3200

Maximum Travel Speed - Full Load (mph)

Lifting Speed - Full Load (fpm)

110

Model

RF1-SD1X35

Voltage/Capacity

36 / 1240

Load Capacity (lbs./kgs.)

3500

Maximum Travel Speed - Full Load (mph)

Lifting Speed - Full Load (fpm)

Model

RF1-SD1X45

Voltage/Capacity

36 / 1240

Load Capacity (lbs./kgs.)

4500

Maximum Travel Speed - Full Load (mph)

Lifting Speed - Full Load (fpm)

Model

RF1-SD1Z45

Voltage/Capacity

36 / 1240

Load Capacity (lbs./kgs.)

4500

Maximum Travel Speed - Full Load (mph)

Lifting Speed - Full Load (fpm)

Model

RF1-SD2Z32

Voltage/Capacity

36 / 1240

Load Capacity (lbs./kgs.)

3200

Maximum Travel Speed - Full Load (mph)

Lifting Speed - Full Load (fpm)
