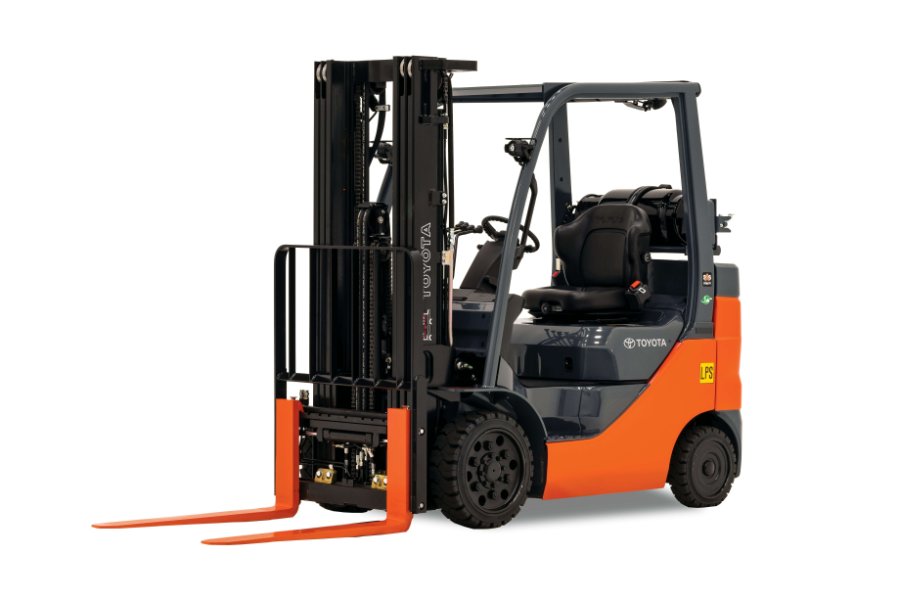

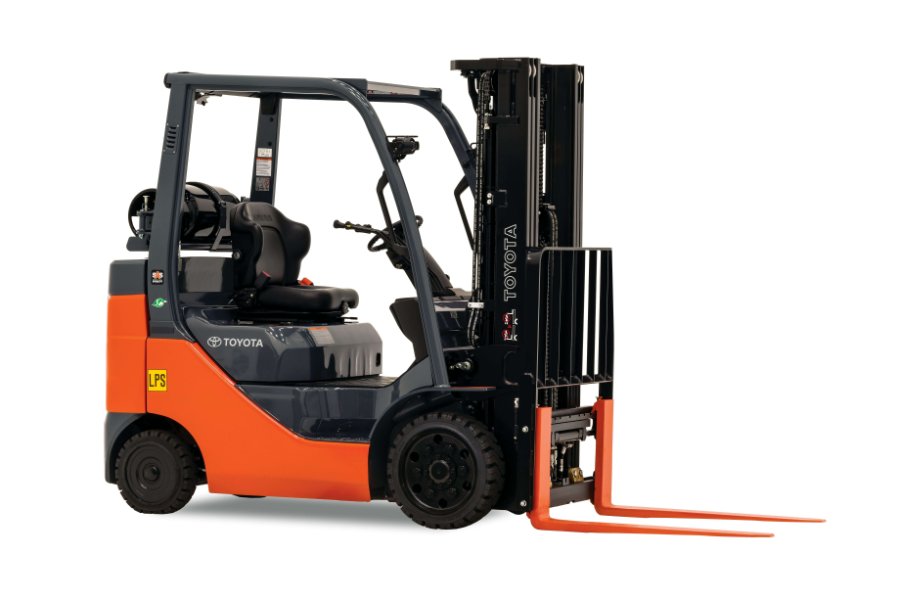

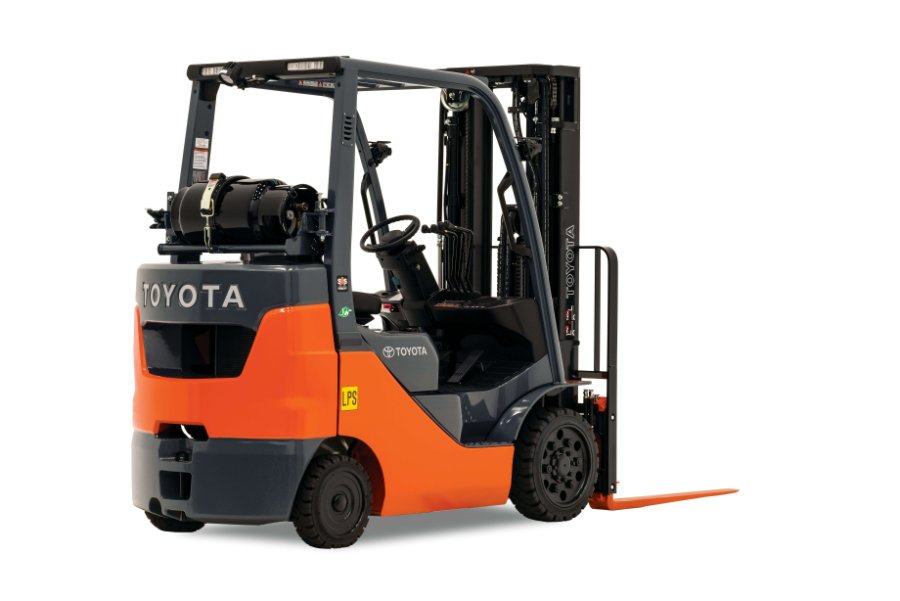

    Core IC Cushion Forklift

    3,000-6,500 lb. Lifting Capacity

    Toyota’s Core IC Cushion Forklift is one of the most popular counterbalance forklifts in North America. Warehousing and distribution applications, the auto industry, general manufacturing plants and retail storefronts often utilize Toyota’s Core IC Cushion for its extreme versatility. Powerful enough to lift up to 6,500 lbs. yet capable of navigating in 12-foot aisles, the Core IC Cushion forklift is a trusted multipurpose forklift.

    Request A Quote Request Rental Quote
    Apply For Financing

    Features

    A Solid Foundation

    Toyota designed and built the legendary 4Y engine for maximum durability, serviceability, and performance. Automotive-style mounts with 3-point engine and transmission mounting reduces vibration.

    System of Active Stability™ and Active Mast Control™ monitor forklift conditions and automatically reacts to reduce the likelihood of a tip-over when traveling and load handling.
    Lower Fuel Consumption*

    Comprehensive cycle testing shows that Toyota’s 8FGCU25 model consumes 8.36% less fuel while completing 1.96% more cycles than the competitor models, resulting in fewer operational costs and improved productivity
    Comfort Comes Standard

    Ample floor space, a standard 4-way adjustable full-suspension seat, large, dual operator assist grips, and a foot-activated parking brake make the Core IC Cushion the clear winner when it comes to operator comfort.
    A Visible Difference

    Angled load backrest crossbar, narrower overhead guard cross bar, a dash-mounted display, a wider mast window, and roll-formed overhead guard pillars give Toyota visibility advantages in all directions.

    Versatility to Get Things Done

    At Toyota, we understand that your operation faces increasing demands—and you need forklifts that can keep up. The Toyota Core IC Cushion Forklift is an industry-leading, multipurpose solution designed to perform across a wide range of indoor applications. Every Core IC Cushion model comes standard with Toyota’s innovative System of Active Stability (SAS)™, enhancing operator confidence and helping reduce the risk of tip-overs. When your workflow requires dependable, all-around performance, this versatile forklift delivers the strength and stability your team can count on.

    Specifications

    For more detailed, product specific specification data, select an individual model number from the chart below.

    Model Load Capacity (lbs./kgs.) Maximum Travel Speed - Full Load (mph) Lifting Speed - Full Load (fpm) Gradeability - Maximum - Full Load Basic Right-Angle Stacking Aisle Width (in.)
    40-8FGCU20 4000 10.6 120 36 92.3
    40-8FGCU25 5000 10.6 118 31 94.3
    40-8FGCU30 6000 10.6 98 25 97.5
    40-8FGCU32 6500 10.6 98 25 98.8
    50-8FGCSU20 4000 10.9 114 35 87.6
    50-8FGCU15 3000 10.9 114 43 83.5
    50-8FGCU18 3500 10.9 114 40 86
    50-8FGCU20 4000 10.6 120 36 92.3
    50-8FGCU25 5000 10.6 120 31 94.3
    50-8FGCU30 6000 10.6 98 25 97.5
    50-8FGCU32 6500 10.6 98 25 98.8

    Performance Data

    Model

    40-8FGCU20

    Load Capacity (lbs./kgs.)

    4000

    Maximum Travel Speed - Full Load (mph)

    10.6

    Lifting Speed - Full Load (fpm)

    120

    Gradeability - Maximum - Full Load

    36

    Basic Right-Angle Stacking Aisle Width (in.)

    92.3

    Model

    40-8FGCU25

    Load Capacity (lbs./kgs.)

    5000

    Maximum Travel Speed - Full Load (mph)

    10.6

    Lifting Speed - Full Load (fpm)

    118

    Gradeability - Maximum - Full Load

    31

    Basic Right-Angle Stacking Aisle Width (in.)

    94.3

    Model

    40-8FGCU30

    Load Capacity (lbs./kgs.)

    6000

    Maximum Travel Speed - Full Load (mph)

    10.6

    Lifting Speed - Full Load (fpm)

    98

    Gradeability - Maximum - Full Load

    25

    Basic Right-Angle Stacking Aisle Width (in.)

    97.5

    Model

    40-8FGCU32

    Load Capacity (lbs./kgs.)

    6500

    Maximum Travel Speed - Full Load (mph)

    10.6

    Lifting Speed - Full Load (fpm)

    98

    Gradeability - Maximum - Full Load

    25

    Basic Right-Angle Stacking Aisle Width (in.)

    98.8

    Model

    50-8FGCSU20

    Load Capacity (lbs./kgs.)

    4000

    Maximum Travel Speed - Full Load (mph)

    10.9

    Lifting Speed - Full Load (fpm)

    114

    Gradeability - Maximum - Full Load

    35

    Basic Right-Angle Stacking Aisle Width (in.)

    87.6

    Model

    50-8FGCU15

    Load Capacity (lbs./kgs.)

    3000

    Maximum Travel Speed - Full Load (mph)

    10.9

    Lifting Speed - Full Load (fpm)

    114

    Gradeability - Maximum - Full Load

    43

    Basic Right-Angle Stacking Aisle Width (in.)

    83.5

    Model

    50-8FGCU18

    Load Capacity (lbs./kgs.)

    3500

    Maximum Travel Speed - Full Load (mph)

    10.9

    Lifting Speed - Full Load (fpm)

    114

    Gradeability - Maximum - Full Load

    40

    Basic Right-Angle Stacking Aisle Width (in.)

    86

    Model

    50-8FGCU20

    Load Capacity (lbs./kgs.)

    4000

    Maximum Travel Speed - Full Load (mph)

    10.6

    Lifting Speed - Full Load (fpm)

    120

    Gradeability - Maximum - Full Load

    36

    Basic Right-Angle Stacking Aisle Width (in.)

    92.3

    Model

    50-8FGCU25

    Load Capacity (lbs./kgs.)

    5000

    Maximum Travel Speed - Full Load (mph)

    10.6

    Lifting Speed - Full Load (fpm)

    120

    Gradeability - Maximum - Full Load

    31

    Basic Right-Angle Stacking Aisle Width (in.)

    94.3

    Model

    50-8FGCU30

    Load Capacity (lbs./kgs.)

    6000

    Maximum Travel Speed - Full Load (mph)

    10.6

    Lifting Speed - Full Load (fpm)

    98

    Gradeability - Maximum - Full Load

    25

    Basic Right-Angle Stacking Aisle Width (in.)

    97.5

    Model

    50-8FGCU32

    Load Capacity (lbs./kgs.)

    6500

    Maximum Travel Speed - Full Load (mph)

    10.6

    Lifting Speed - Full Load (fpm)

    98

    Gradeability - Maximum - Full Load

    25

    Basic Right-Angle Stacking Aisle Width (in.)

    98.8
