Features

Quality, Durability, & Value

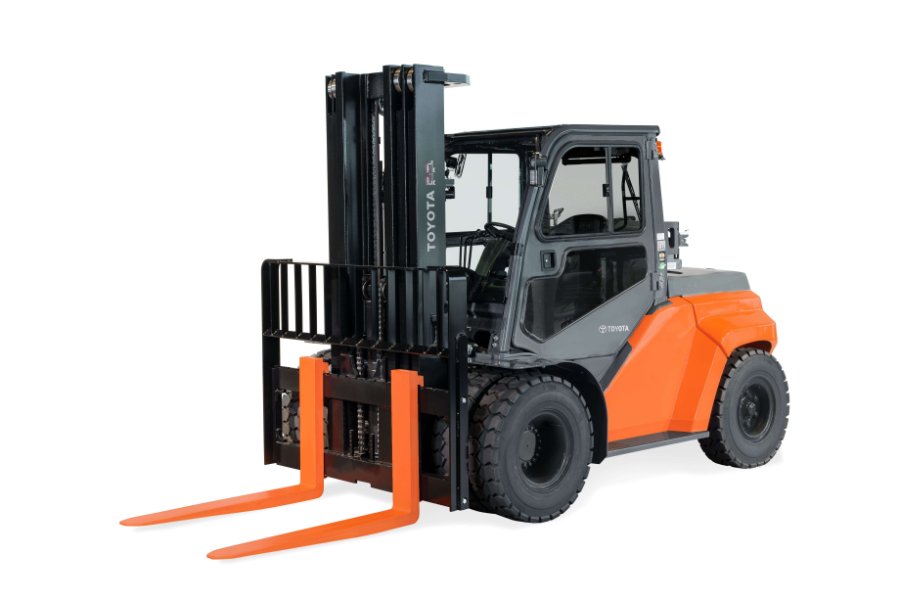

Toyota’s Large IC Pneumatic Counterbalance Forklift comes with a Toyota-designed LP engine for powerful performance as well as force-cooled wet disc brakes to reduce maintenance costs and downtime. This product comes with a standard LCD multifunction display with a built-in analyzer that provides self-diagnostics. The Large IC Pneumatic Forklift has welded, roll-formed overhead guard pillars to provide the operator with maximum protection for improved entry, exit, and load visibility.

Comfortably in Control

While Toyota’s Large IC Pneumatic handles the tough jobs, operators will be riding easy. Tackling heavy loads and tricky terrain doesn’t mean comfort can’t come into place. With the Large IC Pneumatic Forklift, operators will find comfort and operational efficiencies through the following:



  • Premium Comfort Seat

  • Standard LCD Multifunction Display

  • Non-cinching seatbelt

  • Tilt steering column

  • Load-sensing, vibration-isolating power steering

  • Control levers conveniently at hand, but out of the way during entry and exit

  • Low, wide entry steps

  • Optional operator cabin

See more of the Environment

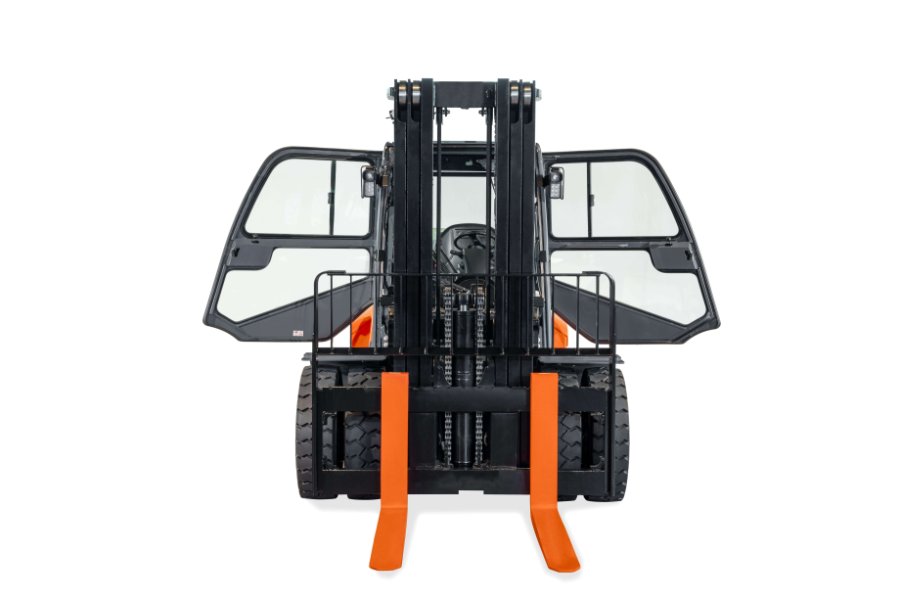

Forward, up, back. Any way you look, operators will appreciate the clear, open sightlines of Toyota’s Large IC Pneumatic. Mast hosing is tucked away, overhead guard bars are oriented for maximum visibility, and the mast crossmember doesn’t block your view of the fork tips. Even the sloped dashboard and slimmer steering wheel and column lend a hand. Visibility plays a leading role in performance and productivity, and the Large IC Pneumatic delivers it like a star.

Specifications

For more detailed, product specific specification data, select an individual model number from the chart below.

Model Load Capacity (lbs.) Maximum Travel Speed - Full Load (mph) Lifting Speed - Full Load (fpm) Gradeability - Maximum - Full Load Basic Right-Angle Stacking Aisle Width (in.)
50-8FG60U 13500 11.8 83 32% 151
50-8FG70U 155700 11.5 / 11.5 83 28 153.0
50-8FG80U 17500 11.5 / 11.5 69 25 155.0

Performance Data

Model

50-8FG60U

Load Capacity (lbs.)

13500

Maximum Travel Speed - Full Load (mph)

11.8

Lifting Speed - Full Load (fpm)

83

Gradeability - Maximum - Full Load

32%

Basic Right-Angle Stacking Aisle Width (in.)

151

Model

50-8FG70U

Load Capacity (lbs.)

155700

Maximum Travel Speed - Full Load (mph)

11.5 / 11.5

Lifting Speed - Full Load (fpm)

83

Gradeability - Maximum - Full Load

28

Basic Right-Angle Stacking Aisle Width (in.)

153.0

Model

50-8FG80U

Load Capacity (lbs.)

17500

Maximum Travel Speed - Full Load (mph)

11.5 / 11.5

Lifting Speed - Full Load (fpm)

69

Gradeability - Maximum - Full Load

25

Basic Right-Angle Stacking Aisle Width (in.)

155.0
