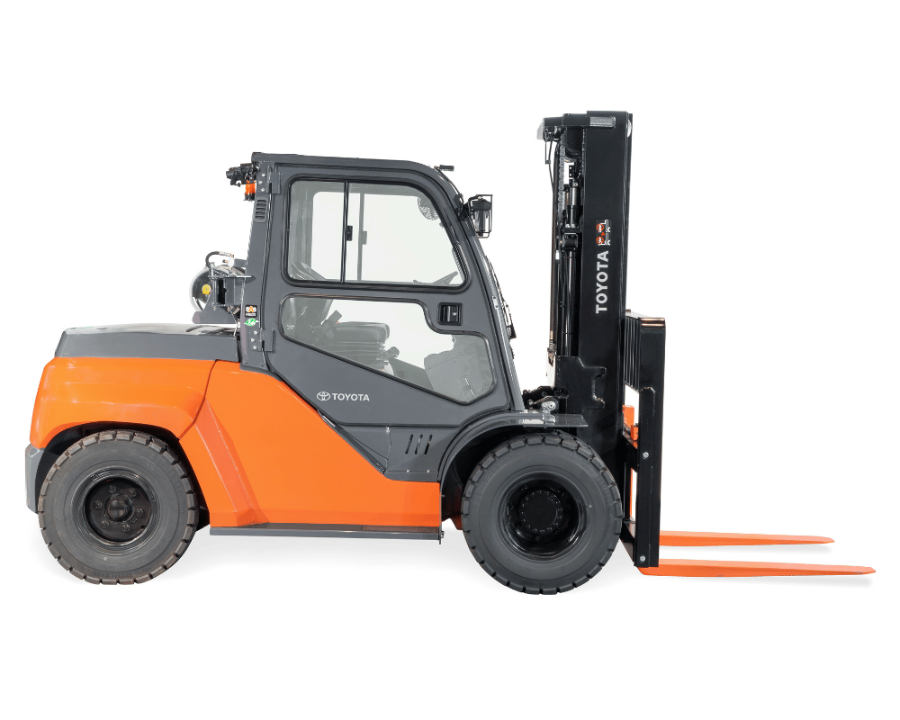

Specifications
General Data
Load Capacity (lbs.)
13500
Power Type
LP
Operator Position
Seated Rider
Tire Type
Pneumatic
Wheels (x=driven)
4x / 2
Exterior Dimensions
Maximum Fork Height (MFH) (in.)
120.5
Free-Lift (in.)
4.9
Fork Size (T x W x L) (in.)
2.4 x 6 x 48
Fork Spread Max. / Min. (in.)
66.9 / 11.8
Tilt Range (deg)
6 / 12
Length to Fork Face (in.)
137.4
Overall Width (in.)
78.5
Mast Lowered Height (in.)
96.8
Mast Extended Height (in.)
174.6
Overhead Guard Height (in.)
90.9
Turning Radius (in.)
127
Load Distance (in.)
22.8
Basic Right-Angle Stacking Aisle Width (in.)
151
Performance
Maximum Travel Speed - Full Load (mph)
11.8
Maximum Travel Speed - No Load (mph)
12
Lifting Speed - Full Load (fpm)
83
Lifting Speed - No Load (fpm)
85
Lowering Speed - Full Load (fpm)
104
Lowering Speed - No Load (fpm)
94
Drawbar Pull - Max. - Full Load (fpm)
9900
Drawbar Pull - Max. - No Load (fpm)
4700
Gradeability - 1 mph - Full Load
25%
Gradeability - Maximum - Full Load
32%
Gradeability - Maximum - No Load
24%
Truck Weights
Total Weight (lb.)
18720
Weight Distribution - Full Load (front / rear) - (lb.)
28650 / 3300
Weight Distribution - No Load (front / rear) - (lb.)
8480 / 10240
Tires
Number (front / rear)
4 / 2
Size - Front
8.25-15-12PR
Size - Rear
8.25-15-12PR
Wheelbase (in.)
88.6
Tread Width (in.)
57.9 / 57.5
Underclearance - Minimum with Load (in.)
4.9
Underclearance -Center of Wheelbase (in.)
9.8
Brake - Service / Parking
Hydraulic <wet> / Hand
Power System
Battery (5-hour rating) (V/Ah)
12 / 35
Rated Horsepower @ rpm (SAE HP)
88 @ 2530
Rated Torque @ rpm (SAE HP)
212 @ 1500
Number of Cylinders
4
Piston Displacement (cu in)
224
Fuel Tank Capacity (US gal)
34
Transmission Type
Powershift
Transmission Speeds (forward / reverse)
2 / 2
Max. Operating Pressure (psi)
2990
Max. Flow Rate (gpm)
33.8
